12T-620I

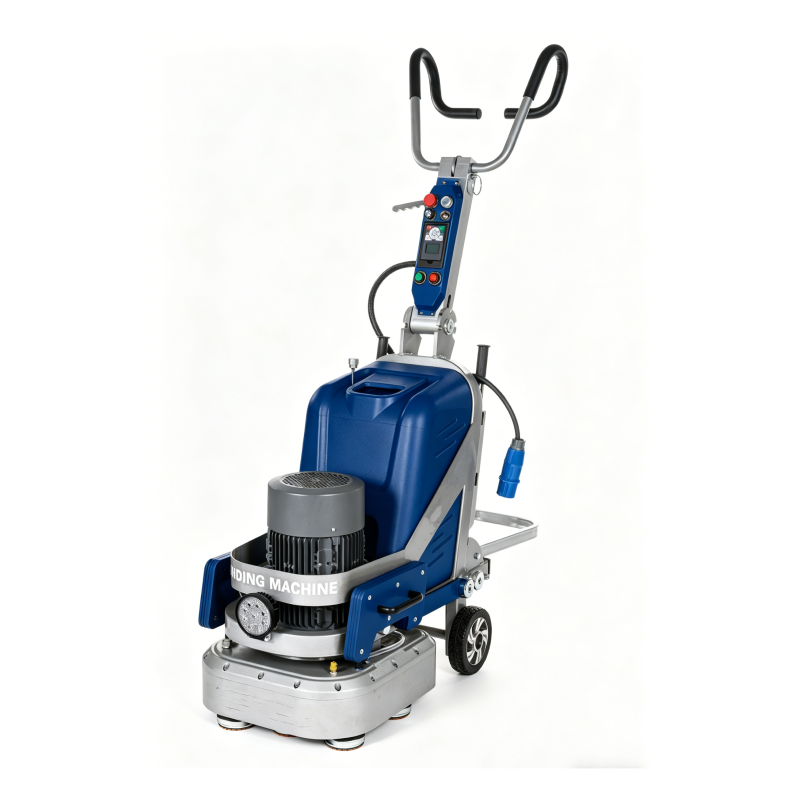

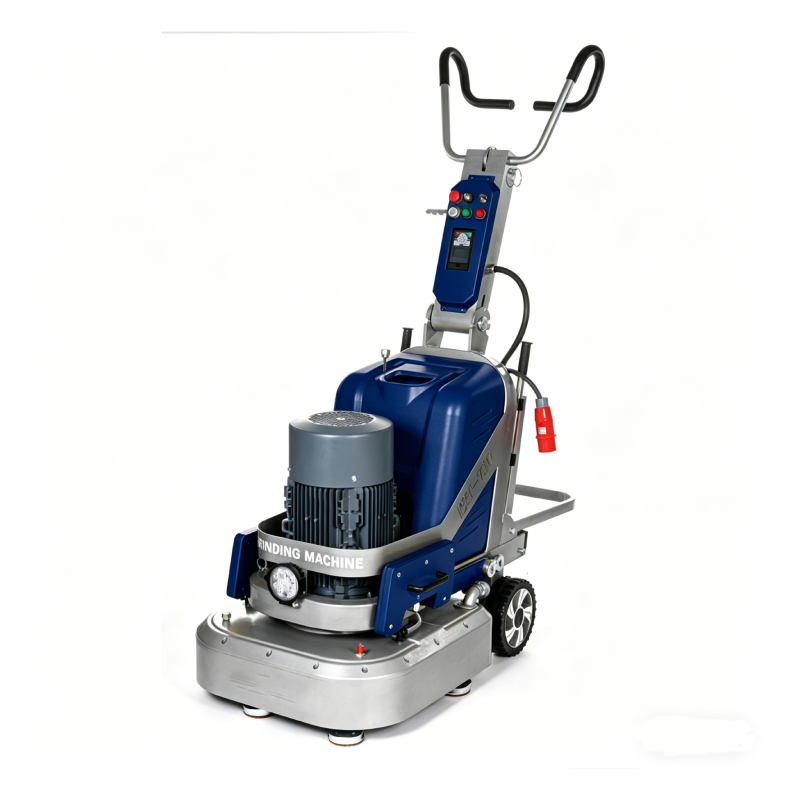

Heavy duty concrete grinding and polishing machine
|
Model |
12T-520I |
12T-620I |
12T-650I |
12T-680I |
12T-720I |
|
Voltage |
220V/380V |
220V/380V |
380V |
380V |
380V |
|
Motor |
7.5KW/5.5KW |
7.5KW |
11kw |
15kw |
15Kw |
|
Inverter |
7.5KW/7.5KW |
7.5KW/11KW |
15KW |
11KW |
18Kw |
|
Working Width |
520mm |
620mm |
650mm |
680mm |
720mm |
|
Rotate Speed |
0-1800rpm |
0-1800rpm |
0-1800rpm |
0-2800rpm |
0-2800rpm |
|
Disc Quantity |
12 |
12 |
12 |
12 |
12 |
|
Water Tank Capacity |
60L |
60L |
80L |
80L |
80L |
|
Weight |
240Kg |
280Kg |
350Kg |
370Kg |
395Kg |

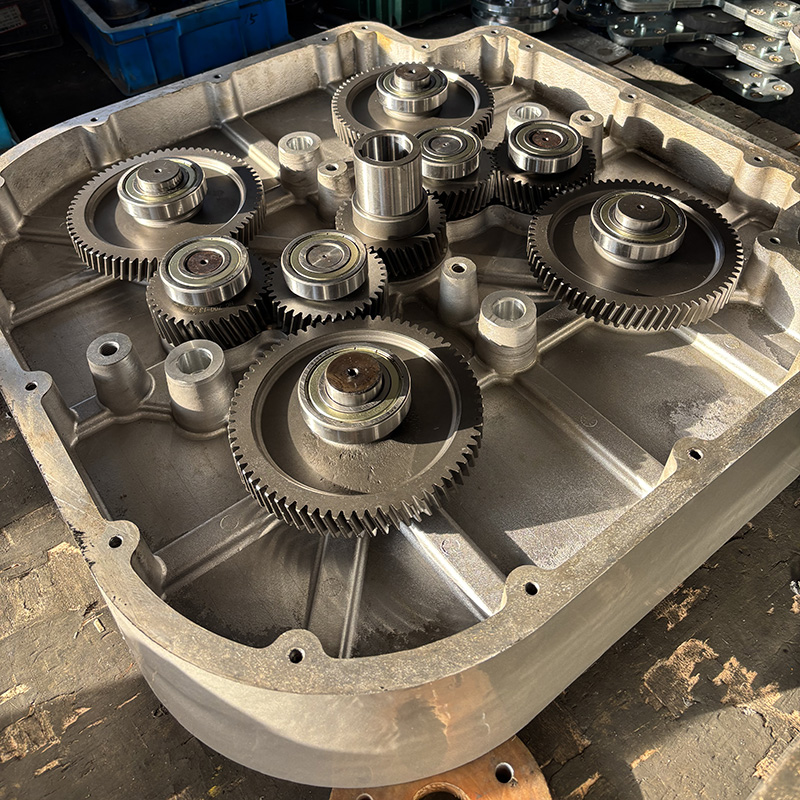

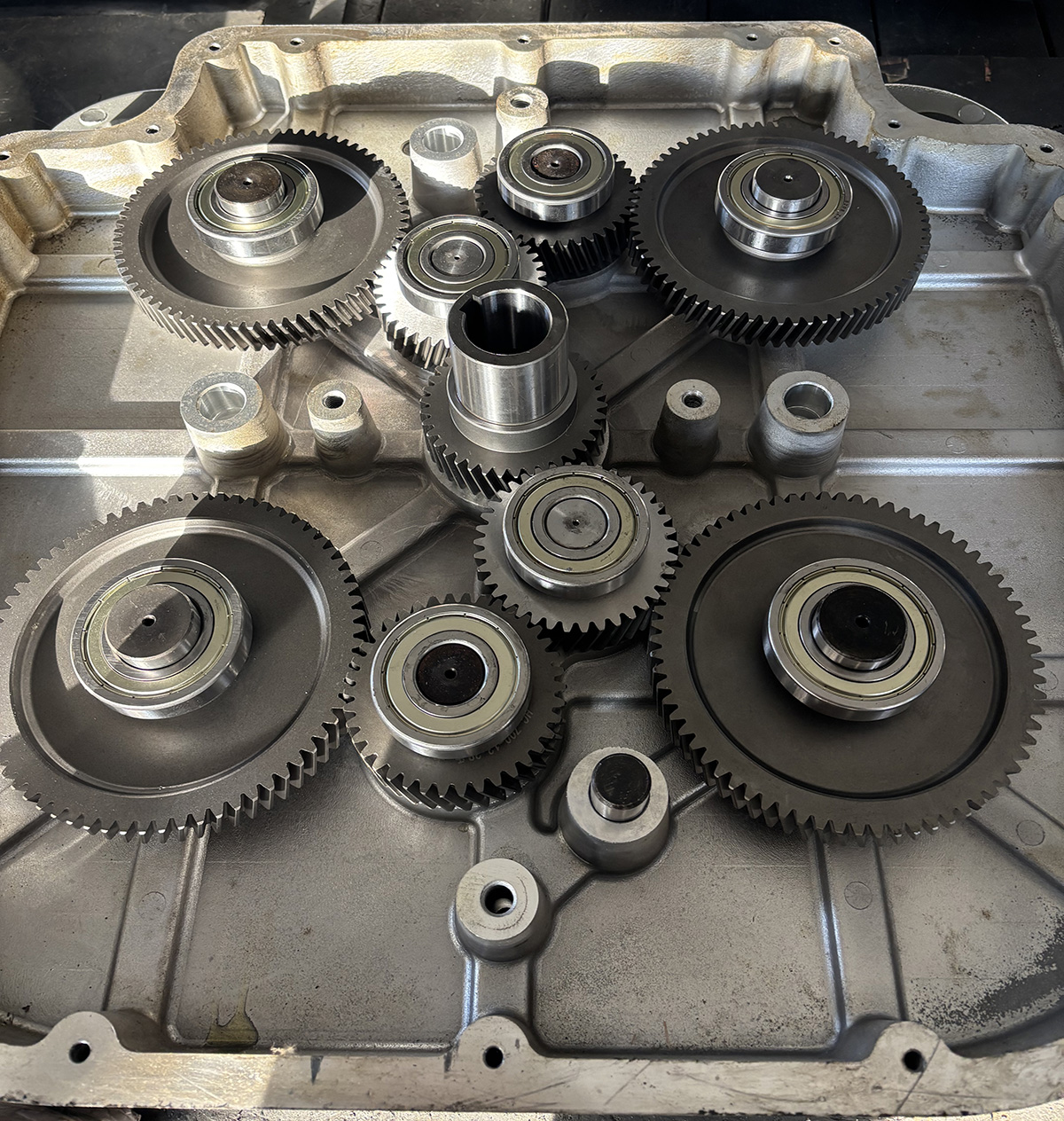

- Integrated gearbox design without traditional gear box outer cover, prevent the mortar wrapped in the shell gap and easy to clean and future maintenance
- All aluminum alloy gearbox no cast iron better heat dissipation
- lower gravity center and more stable grinding performance for bad floor condition
- Automobile gear and bearing with high precision and imported roller bearings, anti collision ability has been greatly improved
- All operation keys and intelligent control panel for code display, easy to understand
- More thicker gearbox made of aluminum not iron, thicker bottom magnetic plate
- big tyres and rocker arm weighted irons, machine can be easily handled by one person when carrying the machine
