VE302
|
Model |
VE301 |
VE302 |
VE303 |
|
Voltage |
220V,50HZ/110V, 60HZ |
220V,50HZ/110V, 60HZ |
220V,50HZ/110V, 60HZ |
|
Motor power |
3.6KW/3KW |
3.6KW/3KW |
3.6KW/3KW |
|
Max vacuum(mbar) |
230/210 |
230/210 |
230/210 |
|
Max airflow(m3/h) |
600/530 |
600/530 |
600/530 |
|
Cleaning dust way |
Manual jet pulse cleaning |
Electric motor vibrating cleaning dust |
Automatic counter blowing cleaning dust |
|
Collecting dust way |
plastic bag D357*22M |
plastic bag D357*22M |
plastic bag D357*22M |
|
Filter |
HEPA H13 filter |
HEPA H13 filter |
HEPA H13 filter |
|
Filter area (c㎡) |
38600 |
38600 |
38600 |
|
Net weight （kg） |
77 |
81 |
83 |
- Classic design with rear motor under seal cover, low noise and safe
- Strong machine body, laser cutting with accurate size, car paint processing technology makes appearance beautiful and durable;

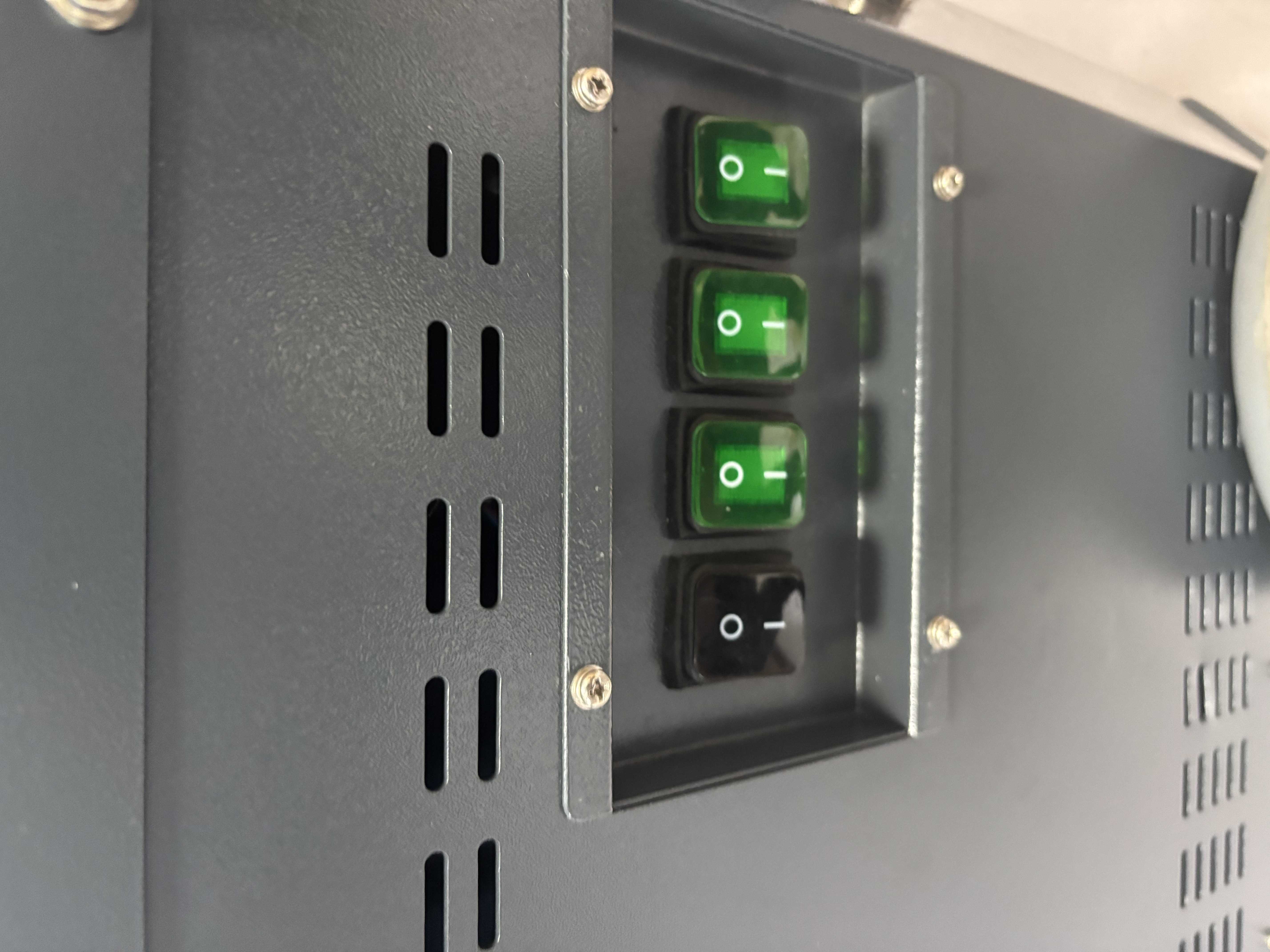

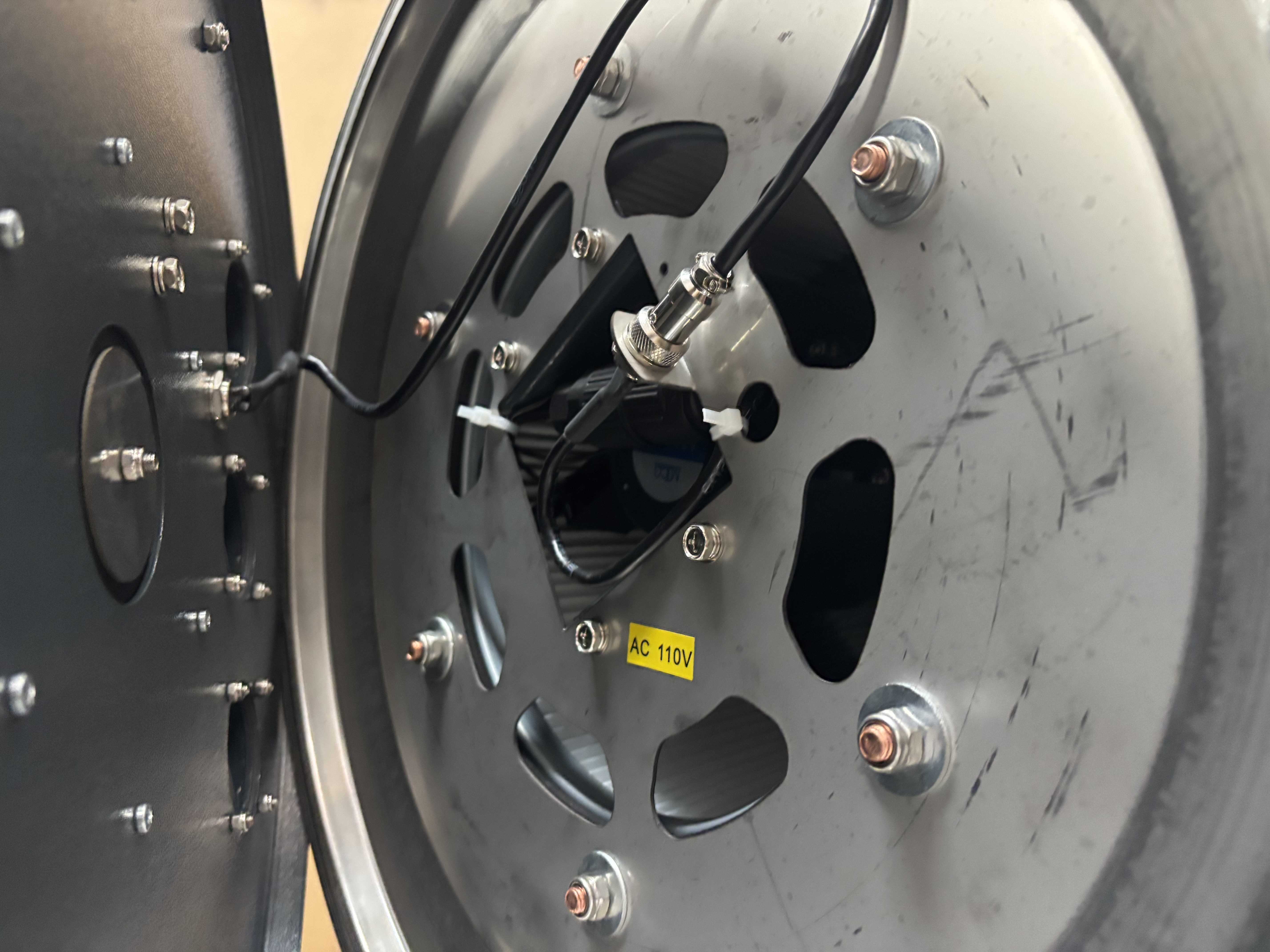

- It adopts 3pcs 1.2kw single phase carbon brush motors, the motors can be turned on and off separately according to the real working condition, energy conservation and environment protection
- Unique manual counter blowing cleaning structure, easy to operate, effectively cleaning dust filter bag
- Unique continuous bag dust collection structure, can be pulled straight and continue to use, saving time and labor.a set dust collection bag length is about 22m and can be used 25times. Dust collection bag material is PE, PE film, light transparent, with moisture, oxygen, acid resistance, alkali resistance,Excellent air-tightness, heat sealing performance
- Adopt two-stage filter unit, first-order filtering units is use polyester non-woven filter cartridge, the particle size of 3.0 microns of dust filtration precision above 99%, and the secondary filter unit adopts imported from Japan "TORAY" polyester fiber filter paper base material, surface coating line processing, the particle size of 0.3 microns of dust filtration precision above 99%, and the filtering precision of PM2.5 has good removal efficiency.
